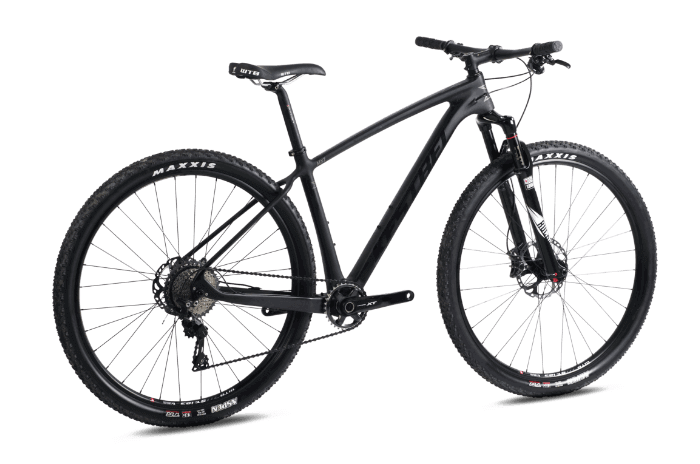

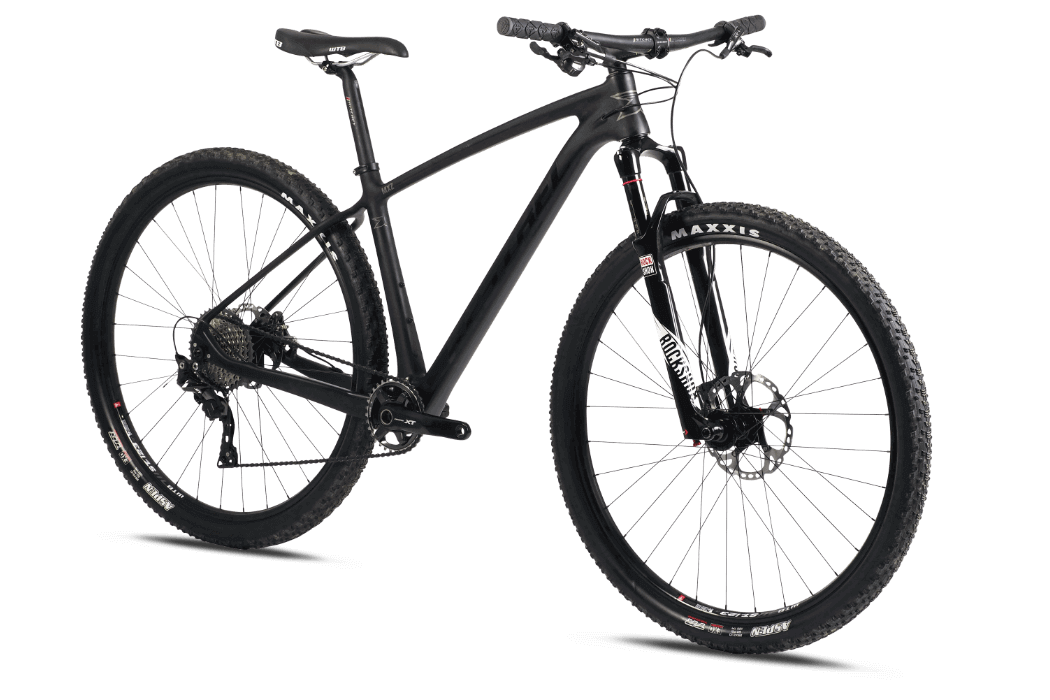

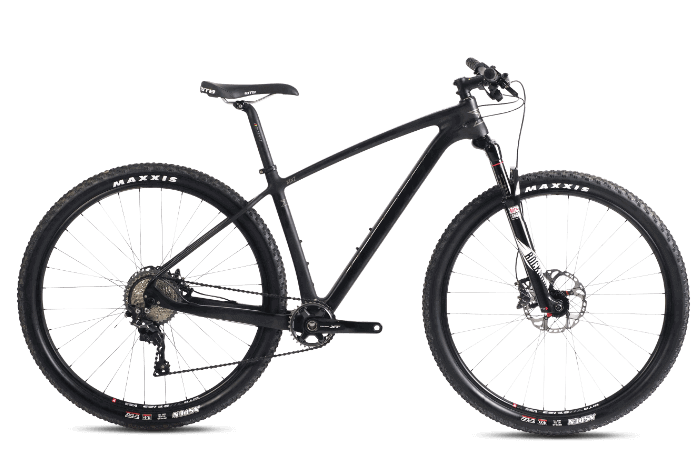

The MXZ features 29” wheels and XC inspired geometry which optimizes rider performance and control on your favorite singletrack. Rock Shox's SID World Cup 100mm travel fork and Shimano Deore XT 1X drivetrain are light and offer premium XC performance. The MXZ, like all new Kestrels is constucted using our highest grade KSL 800k Ultra high modulus carbon fiber for lightweight, stiffness, and control.
The MXZ features our lightest KSL Carbon construction for ultra efficient pedaling performance
Oversized downtube and PF30 bottom bracket provide a ultra efficient pedaling platform
Thin seat stays reduce trail vibrations to allow you to rider longer with less fatigue
| Color(s) | SATIN CARBON / GLOSS BLACK |
| Weight | 10.95kg / 24.09lbs |
| Sizes | 15.5", 17.5", 19", 21" |
| Frame | Kestrel Super Light (KSL) 800K carbon fiber, 1 1/8" - 1 1/2" Headtube, 12mm Thru axle dropout |
| Fork | RockShox SID World Cup, 1 1/8" - 1 1/2" Carbon Steerer, 100mm Travel |
| Wheelset | WTB i23 TCS, 32h thru axle sealed hubs, TCS rim tape installed |
| Tires | Maxxis Aspen, 29x2.1", EXO, tubeless ready, folding |
| Crankset | Shimano Deore XT, 32T |
| Bottom Bracket | Shimano, threaded |
| Rear Derailleur | Shimano Deore XT, 11-speed |
| Shifters | Shimano Deore XT, 11-speed |
| Cassette | Shimano Deore XT, 11-46, 11-speed |
| Chain | KMC X11EL w/ Missing Link, 11-speed |
| Brake Levers | Shimano XT I-SPEC II |
| Headset | FSA No 42. 1 1/8" top, 1 1/2" bottom |
| Handlebar | Ritchey MTN 2X WCS, 740mm, 5mm rise, 9 deg backsweep |
| Stem | Ritchey C-220 WCS, 2014 3D Forged Alloy, 31.8mm clamp |
| Saddle | WTB Rocket Race |
| Grips | WTB DC Trail Grip / DNA Dual Compound |
| Rider Height | Size* | |
| 5'2"-5'5" | 157cm-165cm | S |
| 5'5" - 5'10" | 165cm-177cm | M |
| 5' 10'- 6'2" | 177cm-188cm | L |
| 6'2"-6'6" | 188cm-196cm | XL |
*Kestrel's Size Guide shows suggested sizes. For the most accurate sizing please visit your local authorized Kestrel retailer for a bike fit and a test ride.
| (S) 15.5" | (M) 17.5" | (L) 19" | (XL) 21" | |||
| A | Seat Tube, Center To Top | 395 | 385 | 483 | 533 | |
| C | Top Tube, Effective | 580 | 600 | 620 | 640 | |
| D | Head Tube Length | 100 | 105 | 120 | 130 | |
| E | Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° | |
| G | Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | |
| H | Chainstay Length | 440 | 440 | 440 | 440 | |
| I | Wheelbase | 1077 | 1098 | 1118 | 1139 | |
| J | Bottom Bracket Drop | 60 | 60 | 60 | 60 | |
| K | Fork Offset | 45 | 45 | 45 | 45 | |
| M | Stack | 612 | 618 | 632 | 641 | |
| N | Reach | 387 | 405 | 420 | 438 | |
| O | Standover | 776.8 | 804.4 | 815.5 | 852.8 | |
| Stem | 80 | 90 | 100 | 100 | ||
| Handlebar Width | 740 | 740 | 740 | 740 | ||
| Crank | 172.5 | 175 | 175 | 175 | ||
| Wheel Size | 29" | 29" | 29" | 29" | ||
| Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
